Spridget Brake Failure Warning Lamp (1968-'75)

Spridget Brake Failure Warning Lamp (1968-'75)

Regular price $ 19.99 USD
Regular price Sale price $ 19.99 USD
Sale Sold out
Shipping calculated at checkout.

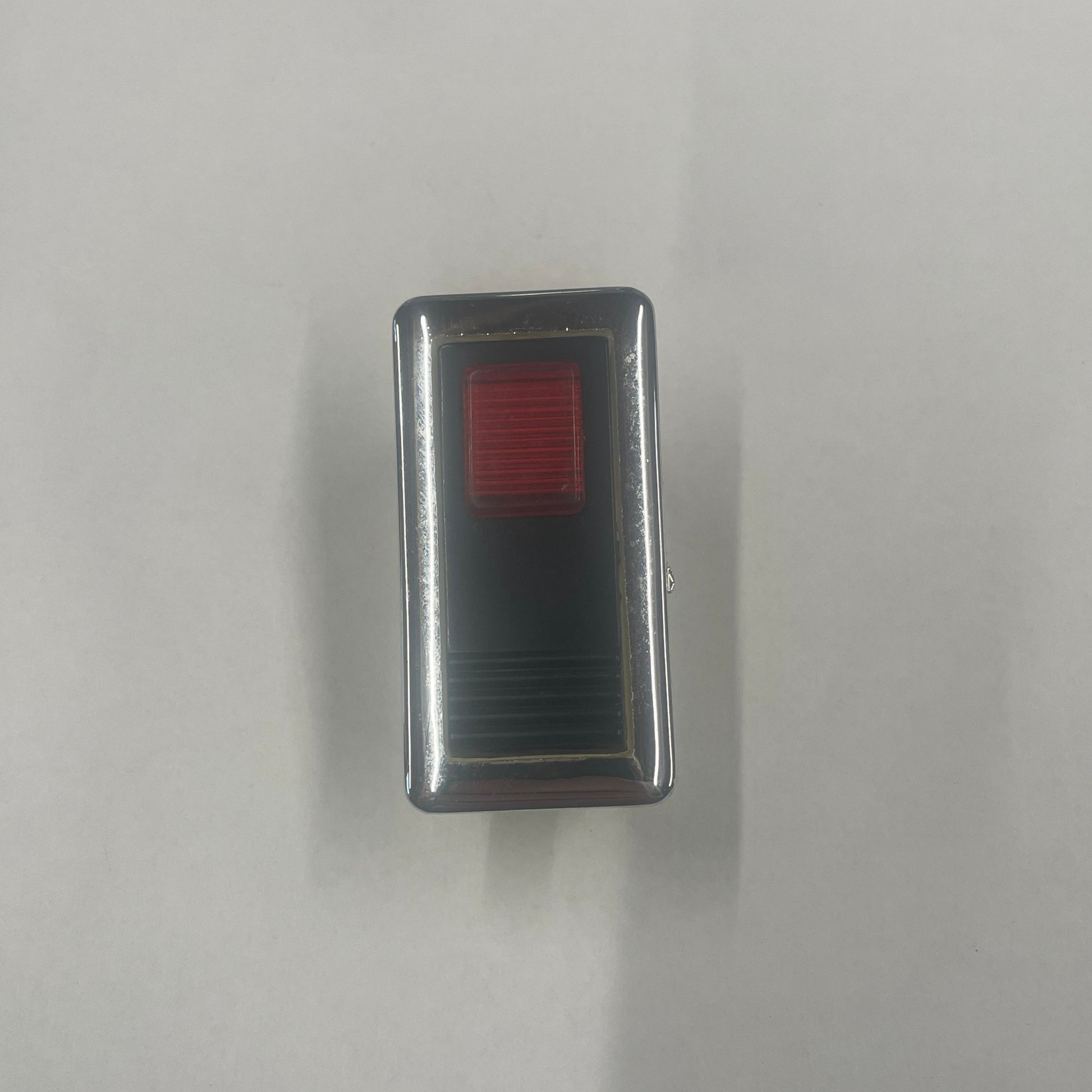

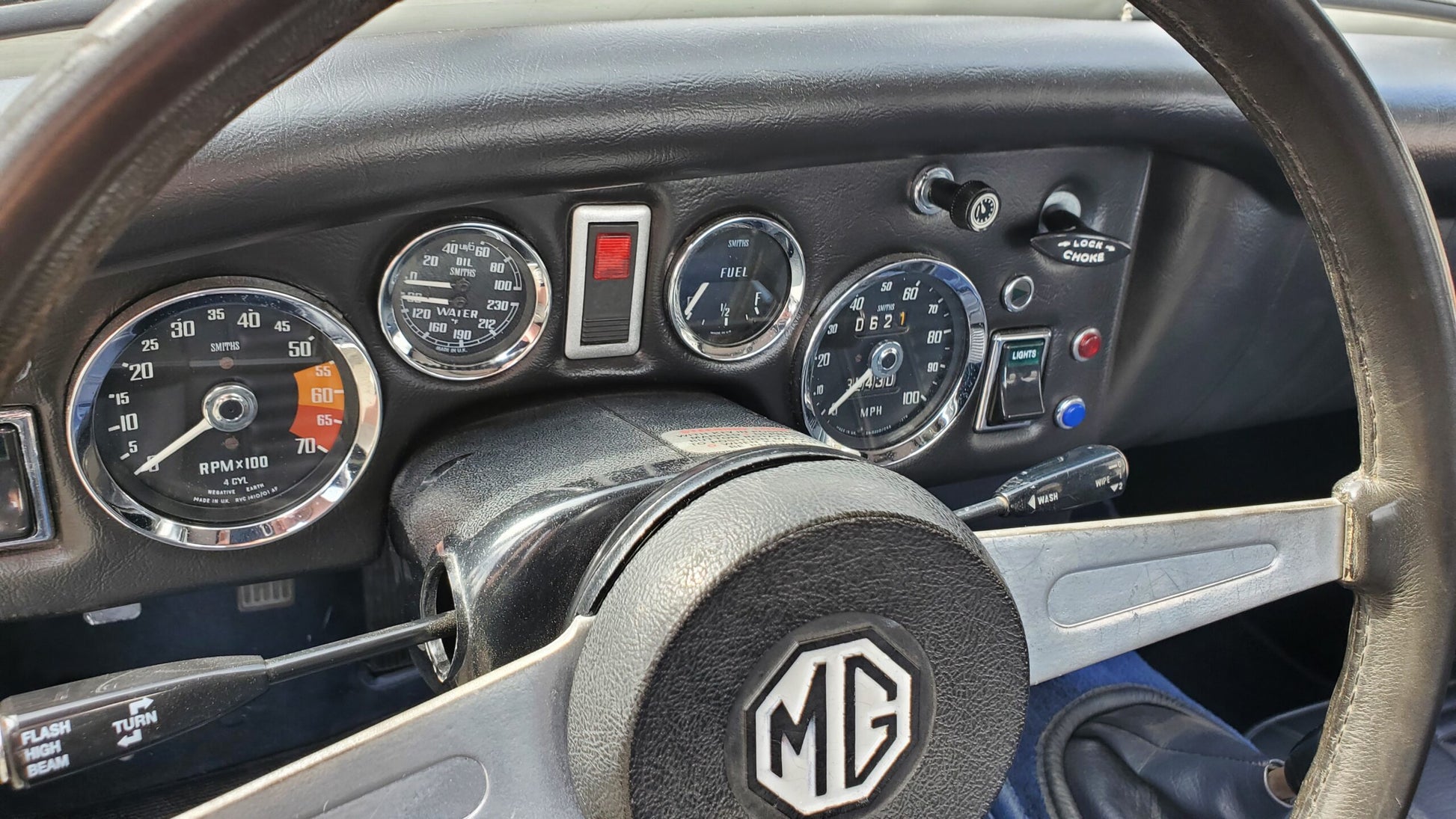

Illuminated red warning indicator which mounts horizontally on the far left of the dashboard. This switch operated by measuring the hydraulic pressure differences between the front and rear - if the pressure difference becomes too great (aka you have a leak), a piston on the brake line connector will move and complete the circuit, causing the lamp to illuminate.

Note: You can test the list to see if it is working by pressing on the end of the switch face plate away from the red lens - it should illuminate when this is done.

Note 2: 68-69 had a black bezel with 3 terminals on the back which is no longer available. This is the available replacement.
